03 GRADER ATTACHMENTS GRADER ATTACHMENTS 03

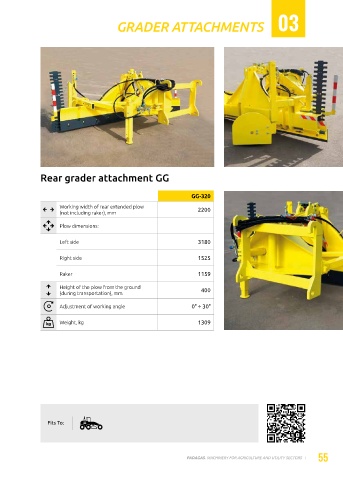

Side grader attachment SG Rear grader attachment GG
SG-250 GG-320
Utmost working width from flank line 2200 Working width of rear extended plow 2200
of vehicle, mm (not including raker), mm
Dimensions of the plow, mm 3000x500x1110 Plow dimensions:
Plow’s ascending height from the surface Left side 3180
(for transportation), mm 550
Adjustment of working width 5° ÷ 45° Right side 1525
Weight, kg 1250 Raker 1159
Height of the plow from the ground
(during transportation), mm 400
Adjustment of working angle 0° ÷ 30°
Weight, kg 1309
Fits To: Fits To:
