01 SWEEPING MACHINES SWEEPING MACHINES 01

EXTRA BIG
BRUSH RING
915 mm

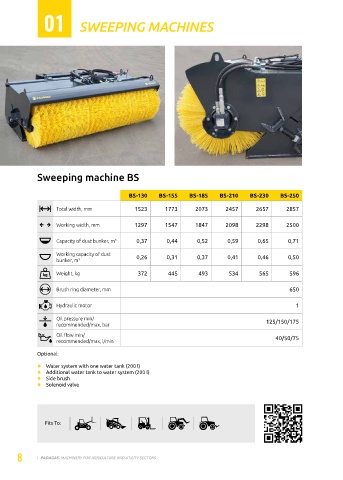

Sweeping machine BS Sweeping machine BS H

BS-130 BS-155 BS-185 BS-210 BS-230 BS-250 BS H-230 BS H-250 BS H-280 BS H-300

Total width, mm 1523 1773 2073 2457 2657 2857 Total width, mm 2657 2857 3157 3357

Working width, mm 1297 1547 1847 2098 2298 2500 Working width, mm 2303 2503 2803 3003

Capacity of dust bunker, m 3 0,37 0,44 0,52 0,59 0,65 0,71 Capacity of dust bunker, m 3 1,32 1,44 1,61 1,72

Working capacity of dust 0,26 0,31 0,37 0,41 0,46 0,50 Working capacity of dust 0,93 1,01 1,13 1,21
bunker, m 3 bunker, m 3

Weight, kg 372 445 493 534 565 596 Weight, kg 858 899 962 1003

Brush ring diameter, mm 650 Brush ring diameter, mm 915

Hydraulic motor 1 Hydraulic motor 2

Oil pressure min/ 125/150/175 Oil pressure min/ 125/150/175
recommended/max, bar recommended/max, bar

Oil flow min/ 40/50/75 Oil flow min/ 80/100/150
recommended/max, l/min recommended/max, l/min

Optional: Optional:
l Water system with one water tank (200 l) l Water system with one water tank (200 l)
l Additional water tank to water system (200 l) l Additional water tank to water system (200 l)
l Side brush l Side brush
l Solenoid valve l Solenoid valve

Fits To: Fits To:
