01 SWEEPING MACHINES SWEEPING MACHINES 01

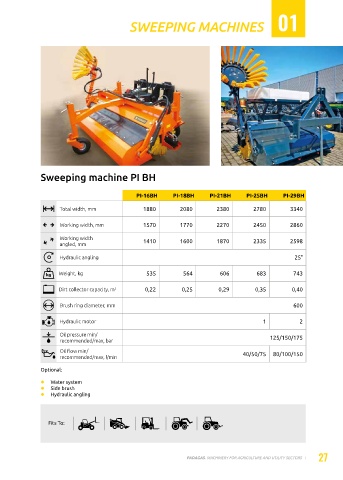

Sweeping machine PI Sweeping machine PI BH

PI-16 PI-18 PI-21 PI-25 PI-29 PI-16BH PI-18BH PI-21BH PI-25BH PI-29BH

Total width, mm 1880 2080 2380 2780 3340 Total width, mm 1880 2080 2380 2780 3340

Working width, mm 1570 1770 2270 2450 2860 Working width, mm 1570 1770 2270 2450 2860

Working width Working width
angled, mm 1410 1600 1870 2335 2598 angled, mm 1410 1600 1870 2335 2598

Hydraulic angling 25° Hydraulic angling 25°

Weight, kg 535 564 606 683 743 Weight, kg 535 564 606 683 743

Brush ring diameter, mm 600 Dirt collector capacity, m 3 0,22 0,25 0,29 0,35 0,40

Hydraulic motor 1 2 Brush ring diameter, mm 600

Oil pressure min/ 125/150/175 Hydraulic motor 1 2
recommended/max, bar

Oil flow min/ 40/50/75 80/100/150 Oil pressure min/ 125/150/175
recommended/max, l/min recommended/max, bar
Oil flow min/
Optional: 40/50/75 80/100/150
recommended/max, l/min
l Water system
l Side brush Optional:
l Hydraulic angling
l Water system
l Side brush
l Hydraulic angling

Fits To: Fits To:

26 I PADAGAS. MACHINERY FOR AGRICULTURE AND UTILITY SECTORS PADAGAS. MACHINERY FOR AGRICULTURE AND UTILITY SECTORS I 27
