01 SWEEPING MACHINES SWEEPING MACHINES 01

EXTRA BIG
BRUSH RING
915 mm

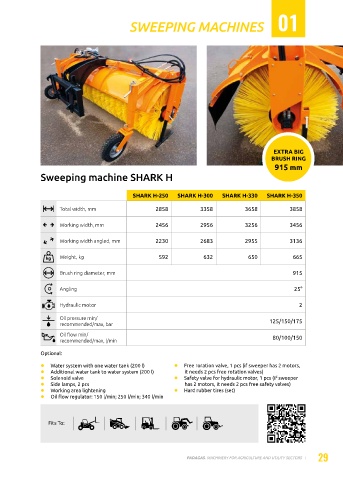

Sweeping machine SHARK Sweeping machine SHARK H

SHARK-250 SHARK-300 SHARK-330 SHARK-350 SHARK H-250 SHARK H-300 SHARK H-330 SHARK H-350

Total width, mm 2858 3358 3658 3858 Total width, mm 2858 3358 3658 3858

Working width, mm 2460 2960 3260 3460 Working width, mm 2456 2956 3256 3456

Working width angled, mm 2230 2683 2955 3136 Working width angled, mm 2230 2683 2955 3136

Weight, kg 560 589 633 625 Weight, kg 592 632 650 665

Brush ring diameter, mm 800 Brush ring diameter, mm 915

Angling 25° Angling 25°

Hydraulic motor 2 Hydraulic motor 2

Oil pressure min/ Oil pressure min/
recommended/max, bar 125/150/175 recommended/max, bar 125/150/175
Oil flow min/ Oil flow min/
recommended/max, l/min 80/100/150 recommended/max, l/min 80/100/150

Optional: Optional:
l Water system with one water tank (200 l) l Free roration valve, 1 pcs (if sweeper has 2 motors, l Water system with one water tank (200 l) l Free roration valve, 1 pcs (if sweeper has 2 motors,
l Additional water tank to water system (200 l) it needs 2 pcs free rotation valves) l Additional water tank to water system (200 l) it needs 2 pcs free rotation valves)
l Solenoid valve l Safety valve for hydraulic motor, 1 pcs (if sweeper l Solenoid valve l Safety valve for hydraulic motor, 1 pcs (if sweeper
l Side lamps, 2 pcs has 2 motors, it needs 2 pcs free safety valves) l Side lamps, 2 pcs has 2 motors, it needs 2 pcs free safety valves)
l Working area lightening l Hard rubber tires (set) l Working area lightening l Hard rubber tires (set)
l Oil flow regulator: 150 l/min; 250 l/min; 340 l/min l Oil flow regulator: 150 l/min; 250 l/min; 340 l/min

Fits To: Fits To:

28 I PADAGAS. MACHINERY FOR AGRICULTURE AND UTILITY SECTORS PADAGAS. MACHINERY FOR AGRICULTURE AND UTILITY SECTORS I 29
