01 SWEEPING MACHINES SWEEPING MACHINES 01

SWEEPER
FOR
EXCAVATOR

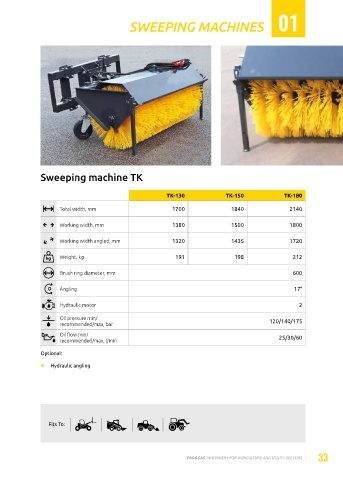

Sweeping machine PIW Sweeping machine TK

PIW-30 PIW-60 PIW-80 PIW-120 PIW-150 PIW-200 PIW-250 TK-130 TK-150 TK-180

Total width, mm 470 950 1150 1550 1809 2367 2867 Total width, mm 1700 1840 2140

Working width, mm 300 600 800 1200 1440 2000 2500 Working width, mm 1380 1500 1800

Weight, kg 105 155 170 200 230 285 320 Working width angled, mm 1320 1435 1720

Brush ring diameter, 800
mm Weight, kg 191 198 212

Hydraulic motor 1 2 Brush ring diameter, mm 600

Oil pressure min/ reco- Angling 17°
mmended/max, bar 125/150/175
Oil flow min/ recom- 40/50/75 80/100/150 Hydraulic motor 2
mended/max, l/min
Oil pressure min/
Optional: 120/140/175
recommended/max, bar
l S-40 bracket Oil flow min/
l S-45 bracket recommended/max, l/min 25/30/60
l S-60 bracket
l Lannen LE bracket Optional:
l NTP-10 bracket
l 915 mm extra big brush ring l Hydraulic angling

Fits To: Fits To:
