01 SWEEPING MACHINES SWEEPING MACHINES 01
2in1
SWEEPING
MACHINES

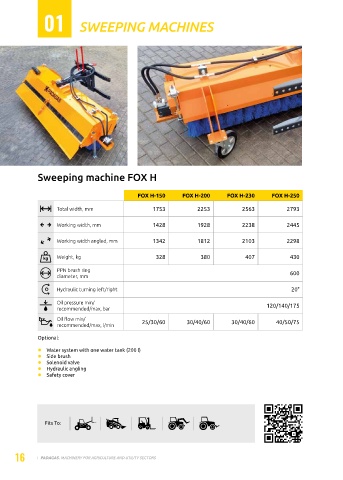

Sweeping machine FOX H Sweeping machine FOX H BH
FOX H-150 FOX H-200 FOX H-230 FOX H-250 FOX H-150BH FOX H-200BH FOX H-230BH FOX H-250BH
Total width, mm 1753 2253 2563 2793 Total width, mm 1753 2253 2563 2793
Working width, mm 1428 1928 2238 2445 Working width, mm 1428 1928 2238 2445
Working width angled, mm 1342 1812 2103 2298 Working width angled, mm 1342 1812 2103 2298
Weight, kg 328 380 407 430 Weight, kg 328 380 407 430
PPN brush ring Dirt collector capacity, m³ 0,12 0,16 0,19 0,20
diameter, mm 600
PPN brush ring
Hydraulic turning left/right 20° 600
diameter, mm
Oil pressure min/ 120/140/175 Hydraulic turning left/right 20°
recommended/max, bar
Oil flow min/ 25/30/60 30/40/60 30/40/60 40/50/75 Oil pressure min/ 120/140/175
recommended/max, l/min recommended/max, bar
Oil flow min/
Optional: 25/30/60 30/40/60 30/40/60 40/50/75
recommended/max, l/min
l Water system with one water tank (200 l)
l Side brush Optional:
l Solenoid valve
l Hydraulic angling l Water system with one water tank (200 l)
l Safety cover l Side brush
l Solenoid valve
l Hydraulic angling
Fits To: Fits To:
