01 SWEEPING MACHINES SWEEPING MACHINES 01

PTO PTO
DRIVEN DRIVEN
MOUNTED IN MOUNTED IN
THE BACK THE BACK

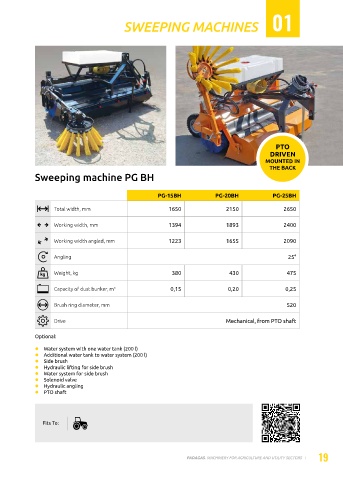

Sweeping machine PG Sweeping machine PG BH

PG-15 PG-20 PG-22 PG-25 PG-30 PG-15BH PG-20BH PG-25BH

Total width, mm 1650 2150 2477 2650 3277 Total width, mm 1650 2150 2650

Working width, mm 1394 1893 2200 2400 3000 Working width, mm 1394 1893 2400

Working width angled, mm 1223 1655 1994 2090 2719 Working width angled, mm 1223 1655 2090

Angling 25° Angling 25°

Weight, kg 270 300 317 335 417 Weight, kg 380 430 475

Brush ring diameter, mm 520 700 Capacity of dust bunker, m 3 0,15 0,20 0,25

Drive Drive Mechanical, from PTO shaft Brush ring diameter, mm 520

Optional: Drive Mechanical, from PTO shaft

l Water system with one water tank (200 l)
l Additional water tank to water system (200 l) Optional:
l Side brush
l Hydraulic lifting for side brush l Water system with one water tank (200 l)
l Water system for side brush l Additional water tank to water system (200 l)
l Solenoid valve l Side brush
l Hydraulic angling l Hydraulic lifting for side brush
l PTO shaft l Water system for side brush
l Solenoid valve
l Hydraulic angling
l PTO shaft

Fits To: Fits To:
