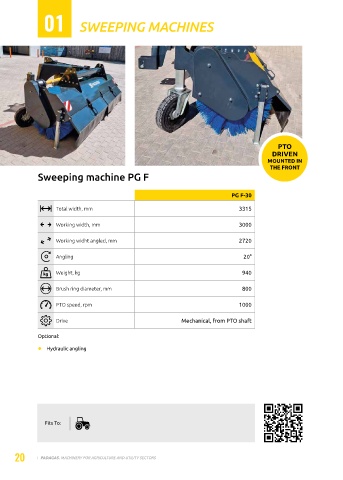

Page 20 - www.hoggmbh.de - PADAGAS Anbaugerätekatalog

01 SWEEPING MACHINES SWEEPING MACHINES 01

PTO 2in1
DRIVEN
MOUNTED IN SWEEPING
THE FRONT MACHINES
Sweeping machine PG F Sweeping machine PROFI

PG F-30 PROFI-1852 PROFI-2102 PROFI-2302 PROFI-2602 PROFI-2902

Total width, mm 3315 Total width, mm 2370 2440 2640 2940 3240

Working width, mm 3000 Working width, 2010 2080 2280 2580 2870
mm

Working widht angled, mm 2720 Working width 1600 1700 2000 2300 2500
angled, mm
Angling 20° Angling 20°

Weight, kg 940 Weight, kg 664 695 717 748 793

Brush ring diameter, mm 800 Capacity of dust 0,36 0,37 0,41 0,46 0,21
bunker, m 3

PTO speed, rpm 1000 Brush ring 700
diameter, mm
Drive Mechanical, from PTO shaft Hydraulic motor 1 2

Optional: Oil pressure, bar 175
l Hydraulic angling
Oil flow, l/min 80

Optional:
l Solenoid valve, free rotation valve and safety valve
l Water system with one water tank (200 l) l Side lamps, 2 pcs
l Additional water tank to water system (200 l) l Working area lightening
l Side brush l Oil flow regulator: 150 l/min; 250 l/min; 340 l/min
l Hydraulic lifting for side brush l Free rotation valve, 1 pcs
l Water system for side brush l Hard rubber tires (set)

Fits To:
Fits To:

20 I PADAGAS. MACHINERY FOR AGRICULTURE AND UTILITY SECTORS PADAGAS. MACHINERY FOR AGRICULTURE AND UTILITY SECTORS I 21
